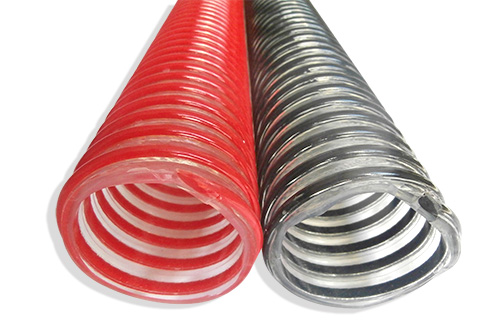

PVC & PU with Single Fiber Reinforced Suction Hose
1. For water irrigation.
2. Light weight,high pressure.
3. Flexible, non-toxic, without odor.
PVC suction hose is suitable for powder, grain, water and oil supply and drainage, etc. Also can used for food industry.
1. This pvc suction & discharge hose with polyester braiding reinforcement, It also provides excellent vacuum and pressure rating while maintaining flexibility.
2. Constructed with flexible PVC inner tube with rigid PVC Helix cover.
3. High & Low temperature operations.
4. Clear construction for visual observation.
5. 3:1 safety factor.
6. Abrasion resistant.
Working temperature: -20 °C – 90 °C
I.D. |
O.D. |
W.P. |
Vacuum Rating |
Bend Radius |
Standard Length |
Approx. Weight |
Inch |
Inch |
PSI@70 ℉ |
In.Hg@70 ℉ |
Inch |
Ft |
Lbs/Ft |
11/2 |
1.91 |
110 |
29 |
2 |
100 |
0.42 |
2 |
2.50 |
110 |
29 |
4 |
100 |
0.60 |
21/2 |
3.14 |
100 |
29 |
5 |
100 |
0.87 |
3 |
3.64 |
100 |
29 |
6 |
100 |
1.08 |
4 |
4.72 |
110 |
29 |
7 |
100 |
1.71 |
5 |
6.04 |
95 |
29 |
9 |
100 |
2.82 |
6 |
7.02 |
90 |
29 |
10 |
100 |
3.88 |
8 |
9.36 |
85 |
28 |
16 |
25/20 |
5.58 |
