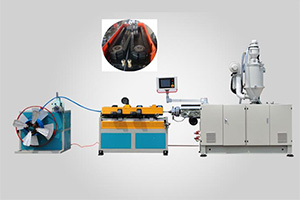

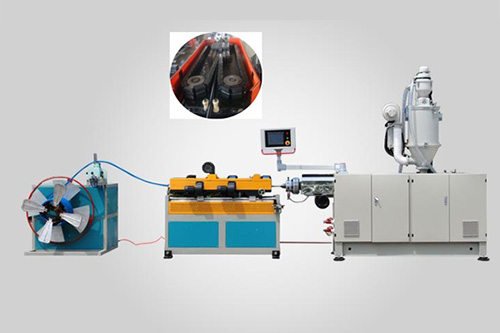

PE PP PVC PA Single-wall Corrugated Pipe Extrusion Line
This line is designed to produce single wall conrrugated pipe which material is PP, PEand PA etc, the special designed screw, special structured screw and special structure mould an protect screw and barrel from easy-abrasion and give an easy forming process. This kind of pipe protect pipe of car and train, supply and drainage pipe for washer, irrigation of farm, shisha hose and so on.
Model |
SJ-35 |
SJ-45 |
SJ-65 |
Pipe Diameter Range(mm) |
6-12 |
9-25 |
25-50 |
Main Machine I/D |
30:1 |
30:1 |
30:1 |
Production Capacity(Kw/h) |
15 |
30 |
60 |
Main Motor Capacity(Kw) |
5.5 |
11 |
18.5 |
Forming Machine Capacity(Kw) |
1.5 |
2.2 |
3.0 |
Pair of Modules |
42 |
42 |
50 |
Cooling Mode |
Water & Air Cooling |
||
Production(m/min) |
5-12 |
5-12 |
5-12 |
Installed Power(Kw) |
12 |
20 |
30 |
