PVC Fiber Reinforced Hose Extrusion Line
This unit is used to produce PVC fiber reinforced hose, also named as PVC net hose, commonly called as snake hose. This kind of soft hose is non-toxic, without odor, pressure resistance, tensile resistance, corrosion resistance, beautiful appearance and lightweight, durable. Suitable for pressure corrosive gas, liquid transporting, widely used in machinery, coal, petroleum, chemical industry, agricultural irrigation, construction, civil(solar heater, gas tank etc) and other fields. Now also used in a large number of gardens, lawn watering.

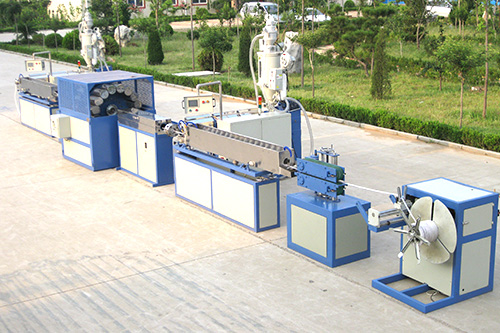

This line consists of main extruders, cooling bath,drying tank, haul off machine, fiber braiding machine, coiler, electric cabinet, etc, which has reasonable design, unique structure, stable performance, easy operation and maintenance. In addition, by adding extruder, fiber braiding machine and other device, PVC five-layer air hoses can also be produced on this line.
Model |
SJ45/30 |
SJ55/30 |
SJ65/30 |
Screw Diameter |
45mm |
55mm |
65mm |
Pipe Size |
6-16mm |
8-25mm |
20-50mm |
Output Capacity |
20-40kg/h |
30-60kg/h |
40-80kg/h |
Power Consumption |
35kw |
42kw |
50kw |
