Weifang Alice Polymer Technolgoy Stock Co., Ltd
Professional Manufacturer of PVC Hoses and Hose Extrusion Line.
Home » PVC Hose » PVC Lay Flat Hose » PVC One Layer Lay Flat Hose
Product Name:

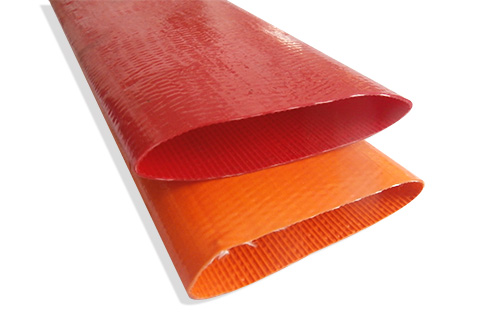

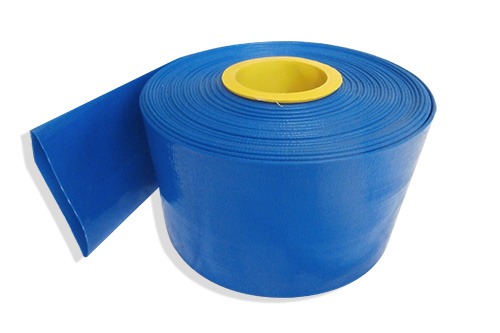

PVC One Layer Lay Flat Hose

Introduction:

1. For water irrigation.

2. Light weight,high pressure.

3. Flexible, non-toxic, without odor.

Application:

This pvc layflat hose is an ideal products used for drainage in the fields of agricultural irrigation, forestry sprinker irrgation, construction project, industrial and mining enterprise.

Characteristics:

1. Choosing high strength polyester filament and high quanlity PVC.

2. It is successively winded, parted the thread regularly and molded by plastic coated once.

3. The pvc layflat hose has an attractive appearance, soft surface and light weight, high burst pressure and long service life, the product is acid & alkali resistance, aging resistance, stretching resistance, anti-wrinkle, non-toxic, flavorless and environmental protection.

Working temperature: -15 °C – 65 °C

Main raw material: PVC, high-strength polyester fiber.

Regular Specifications:

Specification

I.D.

Thickness

Length

W.P.
(At 23 ºC)

B.P.
(At 23 ºC)

Weight

Packing measurement
(D X H)

CBM

Inch

mm

mm

m/roll

Bar

Bar

Kg/roll

cm

m3

1''

26

1.3

100

4

12

15

67X5

0.022

1-1/4''

33

1.2

100

4

12

17

64X6

0.025

1-1/2''

41

1.25

100

5

15

20.5

63X7

0.028

2''

53

1

100

4

12

23

60X9

0.032

2.5''

66

1.15

100

4

12

32

64X12

0.049

3''

78

1.05

100

4

12

36

64X14

0.057

4''

104

1.2

100

4

12

55

67X18

0.036

5''

128

1.35

100

4

12

75

68X22

0.102

6''

155

1.35

100

4

12

90

68X26

0.12

8''

207

2.2

100

3

9

178.5

79X34

0.212
