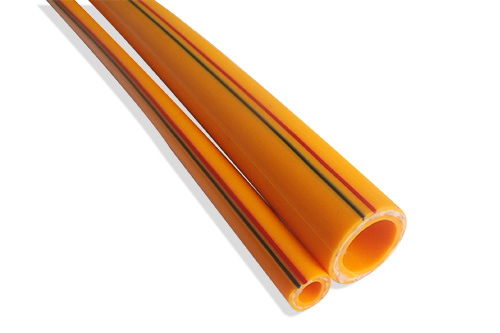

Five Layers PVC High Pressure Spray Hose
Mainly used for conveying gas, high pressure water and other solvents in industry, agriculture and so on, the best replaced tool for supplying gas and water in factory, machinery equipment and agricultural.
This spray hose total have five layers, the inner middle and outer layers is produced by soft PVC material, the middle two layers with high tensile polyester fiber.
Delicate, soft enough, high temperature resistance, wear resistance, corrosion resistance, the tube surface with smooth or strip.
Color: Yellow, Red, Orange, Blue and Green.
Working temperature: -15 °C – 65 °C
Main raw material: PVC
Specification |
I.D. |
O.D. |
Weight |
W.P. |
B.P. |
Length |
1/4 |
6 |
11 |
0.094 |
40 |
120 |
100 |
1/4 |
6 |
12 |
0.1 |
40 |
120 |
100 |
5/16 |
8 |
13 |
0.13 |
40 |
120 |
100 |
5/16 |
8.5 |
13.5 |
0.145 |
40 |
120 |
100 |
5/16 |
8.5 |
14.5 |
0.16 |
40 |
125 |
100 |
3/8 |
10 |
16 |
0.16 |
35 |
105 |
100 |
1/2 |
12 |
18 |
0.18 |
30 |
90 |
100 |
