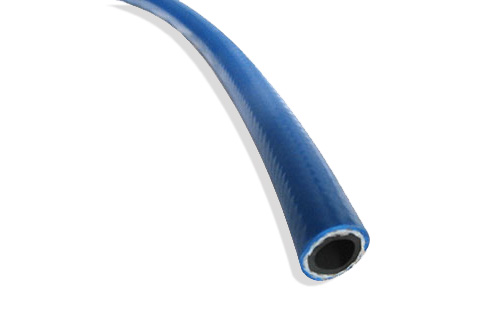

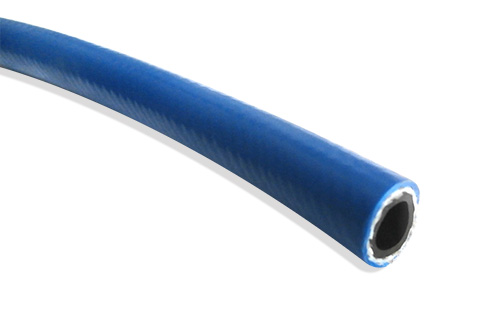

Light Surface Double Fiber Reinforced PVC & Rubber High Pressure Air Hose
This five layers blue air hose can be widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine components, mechanical maintenance, civil engineering equipment.
Tube: Synthetic PVC & Rubber.
Reinforcement: Spiral terylene polyester yarn.
Cover: Synthetic smooth PVC & Rubber compound.
1. Reinforced by two layers knitted polyester fiber, more high pressure resistance.
2. Non-toxic and odourless.
3. Soft and elastic.
4. Anti-erosion, resistant to acid and alkali.
5. Light and flexible, easy to handle.
6. Strong tensile strength, anti-aging and durable.
Working temperature: -15 °C – 75 °C, ( 5 °F – 167 °F)
Specification |
I.D. |
Wall Thickness |
W.P. |
B.P. |
Material |
mm |
mm |
kg/cm2 |
kg/cm2 |
||
Double fiber reinforcement, five PVC & NBR layers |
6 |
3 |
40 |
120 |
PVC & NBR |
8 |
3 |
30 |
90 |
PVC & NBR |
|
10 |
3 |
25 |
80 |
PVC & NBR |
|
16 |
3 |
20 |
70 |
PVC & NBR |
|
19 |
3.2 |
20 |
60 |
PVC & NBR |
|
25 |
3.5 |
15 |
45 |
PVC & NBR |
|
32 |
4 |
12 |
35 |
PVC & NBR |
|
38 |
5 |
10 |
30 |
PVC & NBR |
